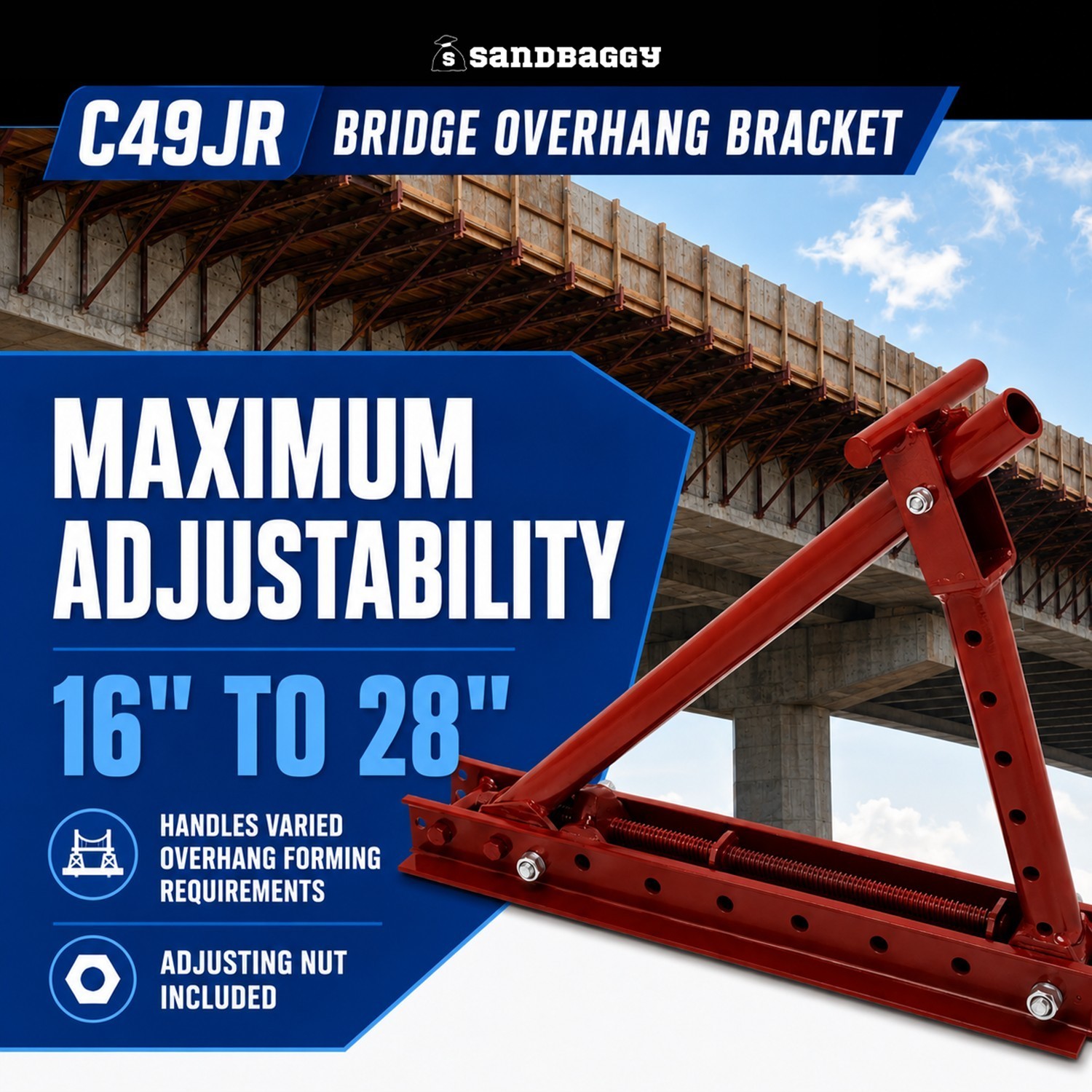

When you're setting up bridge deck formwork on smaller beams, the bracket you choose has to balance compact size, adjustability, and installation speed. The C49JR Bridge Overhang Bracket from Sandbaggy is built for that specific gap between larger overhang brackets and lighter-duty options. It gives you a 16-inch to 28-inch vertical adjustment range and the ability to pre-set the bracket on the ground before placing it in position, which is a meaningful advantage for crews working at height.
C49JR Bridge Overhang Bracket - Adjusts From 16\" to 28\" / Concrete Formwork
Quick verdict

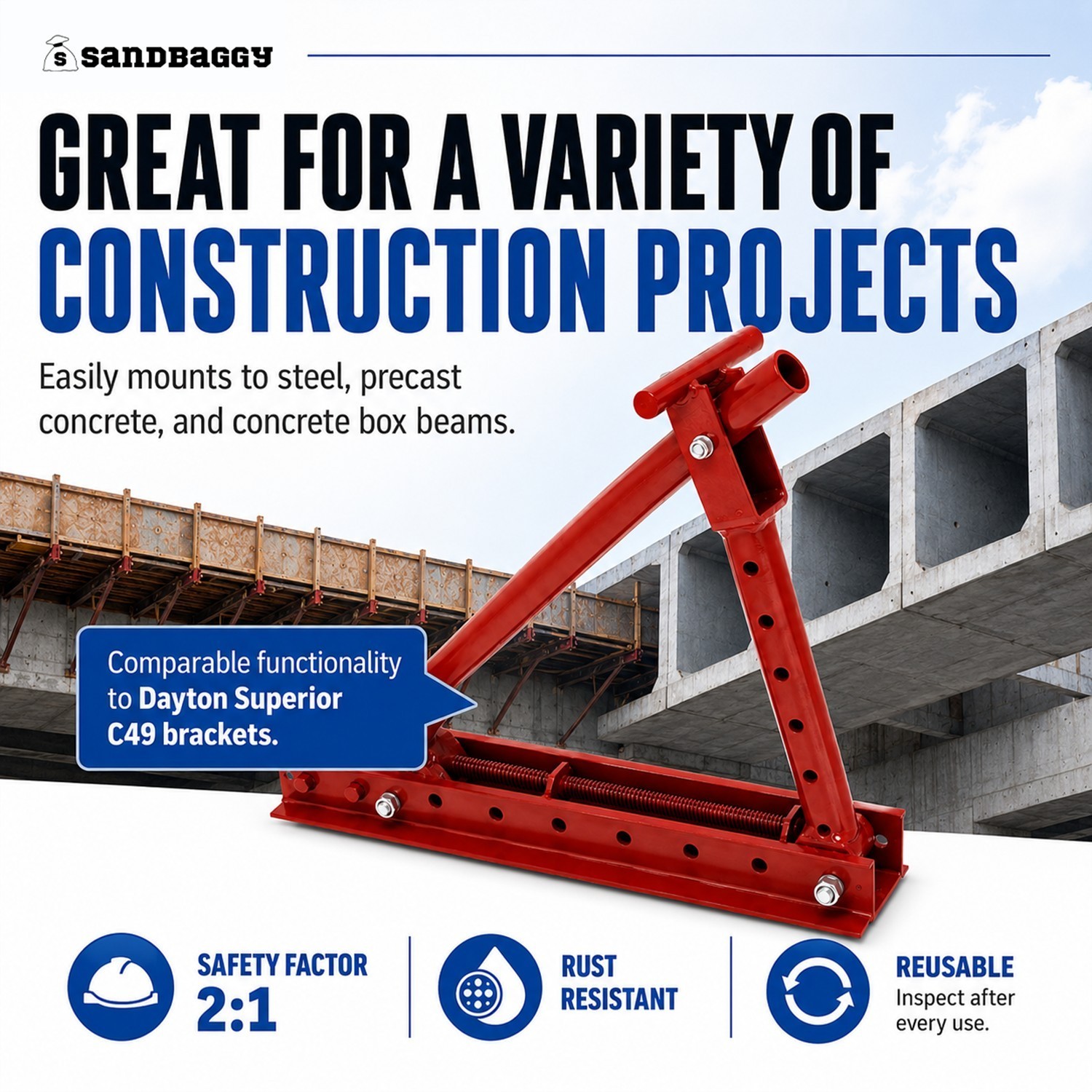

If you need a compact steel overhang bracket for smaller bridge beams and don't mind a short assembly step, the C49JR is a practical choice. It's priced at USD 167.27, includes the adjustment nut, and is designed for fast, productive installation with structural steel, precast/prestressed concrete, and concrete box beams when used with compatible mounting hardware. The trade-off is that it arrives in two pieces and must be assembled before use.
Who it suits
This bracket suits bridge deck forming work where the beam cross-section is on the smaller side. Because it's a smaller version of the C49, it's meant for tighter forming applications rather than large girders. It's also a good fit for contractors who want to preset brackets on the ground and then lift them into place, which can cut down on time working at height.
What stands out

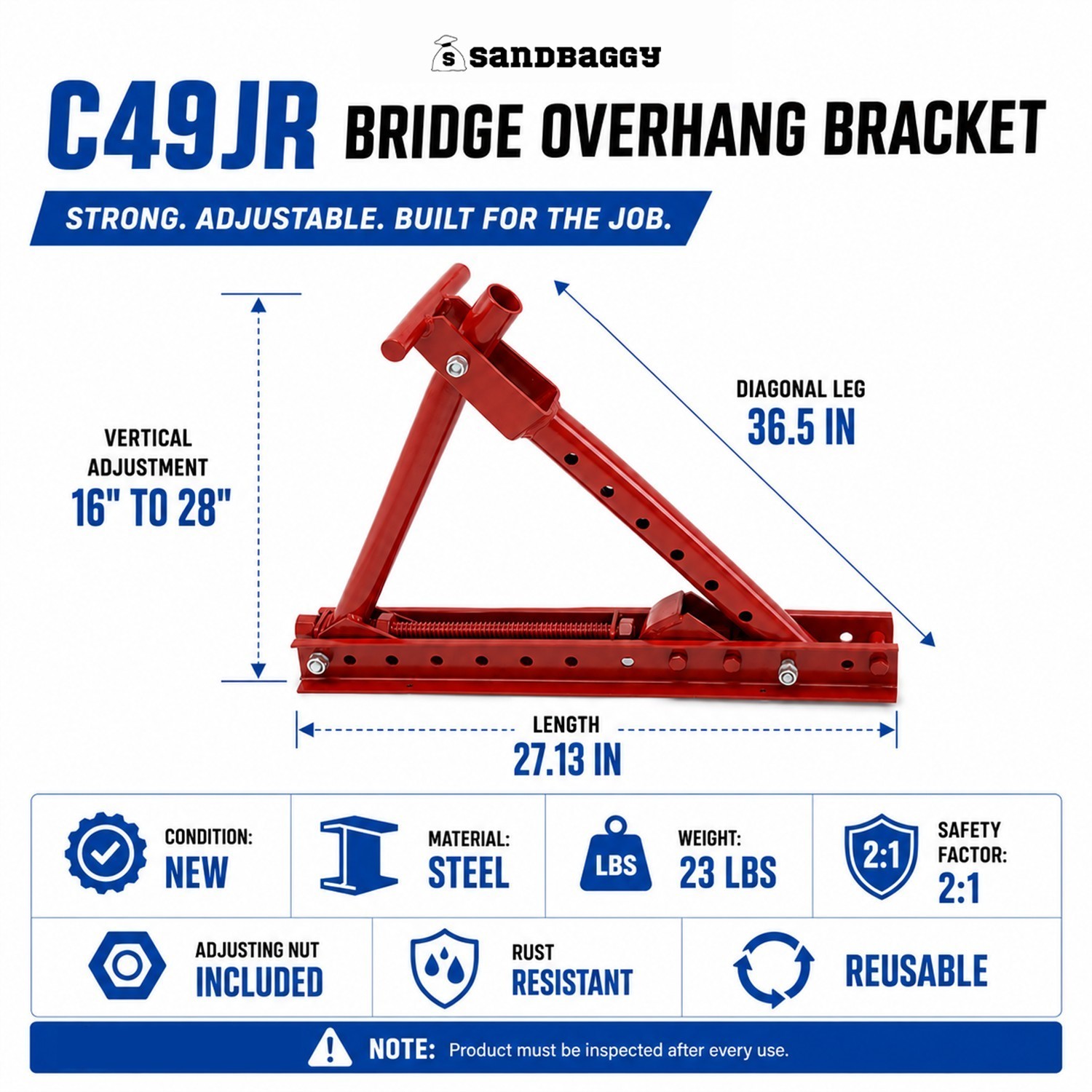

The 16-inch to 28-inch vertical adjustment comes with 2-inch adjustment hole spacing, so you can fine-tune the bracket in manageable increments. The steel construction is rust resistant, and the safety factor is a straightforward 2:1. The 27-inch item length and 36.5-inch diagonal leg give you a compact footprint that matches its smaller-beam purpose. Since it's reusable, you can expect to use it across multiple jobs, but the product must be inspected after every use.
Meaningful trade-offs
The biggest thing to understand is that the C49JR will not work on every beam. It's designed for smaller bridge beams, so if you're forming larger structures, you'll likely need a bigger bracket. Also, the product arrives in two pieces and needs to be assembled together, so there's a setup step before you can put it to work. Make sure your beam dimensions fit within the bracket's vertical adjustment range before you commit to it. You'll also need compatible mounting hardware to attach it to the specific beam type, and the work should be done by qualified professionals following applicable safety regulations.
Bottom line
The C49JR Bridge Overhang Bracket offers a specific answer for a specific problem: compact, adjustable bridge overhang support for smaller beams. At USD 167.27, it includes the adjusting nut and a 2:1 safety factor, with a rust-resistant steel body that can be reused when inspected after each use. If your current forming work falls in that smaller-beam category, the C49JR is worth a close look.
